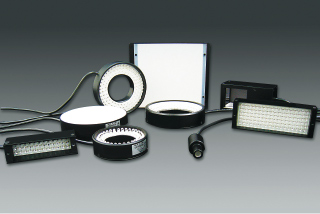

IR Series
- High transmission factor of infrared rays is effective for objects for which inspection by visible light is difficult.・Peak wave length is 850 nm.
・Peak wave length of 940nm is also available to order.
Click here to Over-1000nm IR Light
Products
LED Light
Under-1000nm IR Light
・Peak wave length is 850 nm.
・Peak wave length of 940nm is also available to order.
Click here to Over-1000nm IR Light
Specifications: IR Series
| Type | Peak wave length | Specifications and dimensions | Power consumption | DXF | |
|---|---|---|---|---|---|
| UDR-28IR50-850* | 850 nm | Direct ring / φ28 | 24V/4.2W | DXF | |
| UDR-28IR50-940* | 940 nm | Direct ring / φ28 | 24V/4.2W | DXF | |
| UDR-35IR70-F-850* | 850 nm | Direct ring / φ35 | 24V/7.6W | DXF | |
| UDR-35IR70-F-940* | 940 nm | Direct ring / φ35 | 24V/7.6W | DXF | |
| ULR-48IR74-850* | 850 nm | Low-angle ring / φ48 | 24V/5.9W | DXF | |
| ULR-48IR74-940* | 940 nm | Low-angle ring / φ48 | 24V/5.9W | DXF | |
| ULR-96IR132-850* | 850 nm | Low-angle ring / φ96 | 24V/17.6W | DXF | |
| ULR-96IR132-940* | 940 nm | Low-angle ring / φ96 | 24V/17.6W | DXF | |
| UNS-20IR74-850* | 850 nm | Shadowless ring / φ74 | 24V/6.7W | DXF | |
| UB-50IR15-850* | 850 nm | Bar / 50×15 | 24V/2.5W | DXF | |
| UB-50IR15-940* | 940 nm | Bar / 50×15 | 24V/2.5W | DXF | |
| UB-75IR30-850* | 850 nm | Bar / 75×30 | 24V/7.6W | DXF | |
| UB-75IR30-940* | 940 nm | Bar / 75×30 | 24V/7.6W | DXF | |
| UB-130IR15-850* | 850 nm | Bar / 130×15 | 24V/6.7W | DXF | |
| UB-130IR15-940* | 940 nm | Bar / 130×15 | 24V/6.7W | DXF | |
| USCO-50IR50-850* | 850 nm | Pseudo-coaxial / 50×50 | 24V/7.6W | DXF | |
| U-SPIR-850* | 850 nm | Spot / φ8 | 24V/0.8W | DXF | |
| UEB-100IR100-850* | 850 nm | Edge type / 100×100 | 24V/6.7W | DXF | |
| UDB-90IR90-850* | 850 nm | Direct type / 90×90 | 24V/22.7W | DXF |
“*” represents built-to-order products.
For other shapes, separately contact our sales representative.
