ULR Series
・Suitable for inspection of surfaces with minor irregularity.・Suitable for highlighting a chipped edge, etc.
・360-degree lighting enables easy installation and adjustment.
・Use of a diffusion plate offers variable light quality.
Products
LED Light
Low-Angle Ring Light
・Suitable for highlighting a chipped edge, etc.
・360-degree lighting enables easy installation and adjustment.
・Use of a diffusion plate offers variable light quality.
Specifications: ULR Series
| Type | Light color | Ring I.D. (mm) | Ring O.D. (mm) | Power consumption | DXF | |
|---|---|---|---|---|---|---|
| ULR-23R40 | Red ● | φ23 | φ40 | 24V/1.0W | DXF | |
| ULR-23W40 | White ○ | φ23 | φ40 | 24V/1.6W | ||
| ULR-23B40-2 | Blue ● | φ23 | φ40 | 24V/1.6W | ||
| ULR-25R50 | Red ● | φ25 | φ50 | 24V/1.9W | DXF | |
| ULR-25W50 | White ○ | φ25 | φ50 | 24V/3.3W | ||
| ULR-25B50-2 | Blue ● | φ25 | φ50 | 24V/3.3W | ||
| ULR-48R74 | Red ● | φ48 | φ74 | 24V/3.4W | DXF | |
| ULR-48W74 | White ○ | φ48 | φ74 | 24V/5.7W | ||
| ULR-48B74-2 | Blue ● | φ48 | φ74 | 24V/5.7W | ||
| ULR-68R100 | Red ● | φ68 | φ100 | 24V/7.2W | DXF | |
| ULR-68W100 | White ○ | φ68 | φ100 | 24V/12.2W | ||
| ULR-68B100-2 | Blue ● | φ68 | φ100 | 24V/12.2W | ||
| ULR-96R132* | Red ● | φ96 | φ132 | 24V/10.1W | DXF | |
| ULR-96W132* | White ○ | φ96 | φ132 | 24V/17.1W | ||
| ULR-96B132* | Blue ● | φ96 | φ132 | 24V/17.1W | ||
| ULR-134R170* | Red ● | φ134 | φ170 | 24V/13.4W | DXF | |
| ULR-134W170* | White ○ | φ134 | φ170 | 24V/22.8W | ||
| ULR-134B170* | Blue ● | φ134 | φ170 | 24V/22.8W | ||
| ULR-172R208* | Red ● | φ172 | φ208 | 24V/17.3W | DXF | |
| ULR-172W208* | White ○ | φ172 | φ208 | 24V/29.4W | ||
| ULR-172B208* | Blue ● | φ172 | φ208 | 24V/29.4W | ||
| ULR-250R286* | Red ● | φ250 | φ286 | 24V/21.6W | DXF | |
| ULR-250W286* | White ○ | φ250 | φ286 | 24V/36.7W | ||
| ULR-250B286* | Blue ● | φ250 | φ286 | 24V/36.7W |
"*" represents built-to-order products. Green light is also available for BTO products.
Red light can be operated using a higher brightness 4-element LED in which case "2" should be put to the end of the type code.

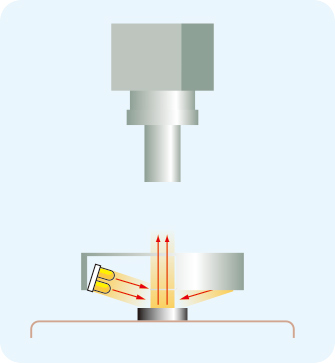

Conceptual illuminance figure
