UNS Series
・Suitable for inspection of workpieces with high reflectivity.・Capable of reducing LED element glare.
・Multi-directional illuminance effects achieved by means of diffused light from all surfaces.
Products
LED Light
Shadowless Ring Light
・Capable of reducing LED element glare.
・Multi-directional illuminance effects achieved by means of diffused light from all surfaces.
Specifications: UNS Series
| Type | Light color | Ring I.D. (mm) | Ring O.D. (mm) | Power consumption | DXF | |
|---|---|---|---|---|---|---|
| UNS-20R74 | Red ● | φ20 | φ74 | 24V/3.8W | DXF | |
| UNS-20W74 | White ○ | φ20 | φ74 | 24V/6.5W | ||
| UNS-20B74-2 | Blue ● | φ20 | φ74 | 24V/6.5W | ||
| UNS-33R104 | Red ● | φ33 | φ104 | 24V/4.8W | DXF | |
| UNS-33W104 | White ○ | φ33 | φ104 | 24V/8.2W | ||
| UNS-33B104-2 | Blue ● | φ33 | φ104 | 24V/8.2W | ||
| UNS-44R123 | Red ● | φ44 | φ123 | 24V/6.7W | DXF | |
| UNS-44W123 | White ○ | φ44 | φ123 | 24V/11.4W | ||
| UNS-44B123-2 | Blue ● | φ44 | φ123 | 24V/11.4W |
Green light is also available for BTO products.
Red light can be operated using a higher brightness 4-element LED in which case "2" should be put to the end of the type code.

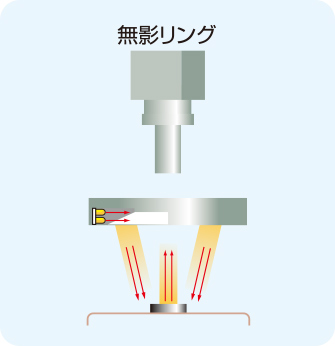

Conceptual illuminance figure
