UDB Series
・Suitable for transmission inspection.・High-intensity plane emission is achieved by distributing ED elements directly underneath.
Products
LED Light
Direct Transmitted Light
・High-intensity plane emission is achieved by distributing ED elements directly underneath.
Specifications: UDB Series
| Type | Light color | Light-emitting surface dimensions (mm) | Power consumption | DXF | |
|---|---|---|---|---|---|
| UDB-30R30 | Red ■ | 30×30 | 24V/1.4W | DXF | |
| UDB-30W30 | White □ | 30×30 | 24V/2.4W | ||
| UDB-30B30-2 | Blue ■ | 30×30 | 24V/2.4W | ||
| UDB-60R60 | Red ■ | 60×60 | 24V/5.8W | DXF | |
| UDB-60W60 | White □ | 60×60 | 24V/9.8W | ||
| UDB-60B60-2 | Blue ■ | 60×60 | 24V/9.8W | ||
| UDB-90R90 | Red ■ | 90×90 | 24V/13.0W | DXF | |
| UDB-90W90 | White □ | 90×90 | 24V/22.0W | ||
| UDB-90B90-2 | Blue ■ | 90×90 | 24V/22.0W | ||
| UDB-220R100* | Red ■ | 220×100 | 24V/24.0W | DXF | |
| UDB-220W100* | White □ | 220×100 | 24V/40.8W | ||
| UDB-220B100* | Blue ■ | 220×100 | 24V/40.8W |
"*" represents built-to-order products. Green light is also available for BTO products.
Red light can be operated using a higher brightness 4-element LED in which case "2" should be put to the end of the type code.

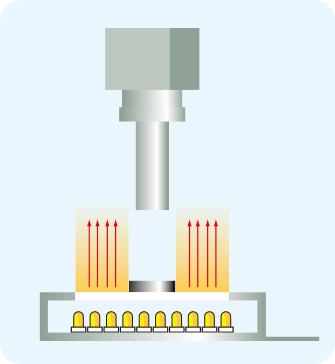

Conceptual illuminance figure
