LED Light

Line Light

UHPL1 Series

Basic model that realizes substantial cost reduction while maintaining the base performance. The condenser type is miniature and light-weight thanks to the Fresnel lens. 3 types with the common enclosure and different optical characteristics are available.

Characteristics
Light Specifications
Power Supply Specifications
Illuminance Data

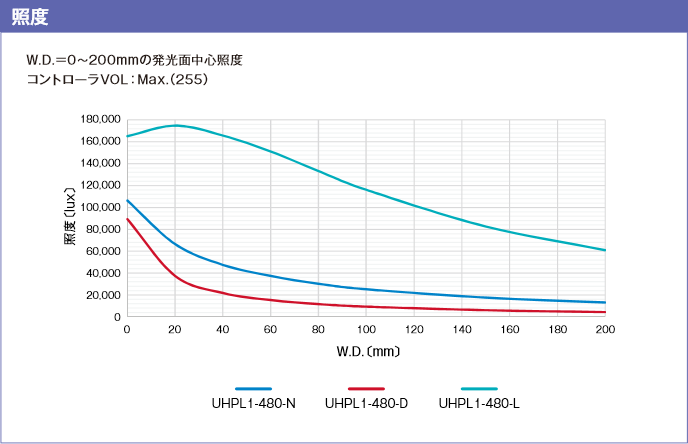

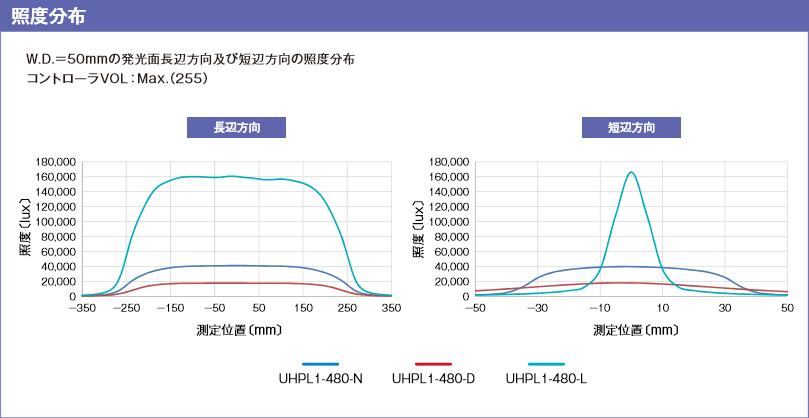

3 different light distribution characteristics for different applications allows for various image inspections of printing, paper, film, resin and metal materials, etc.

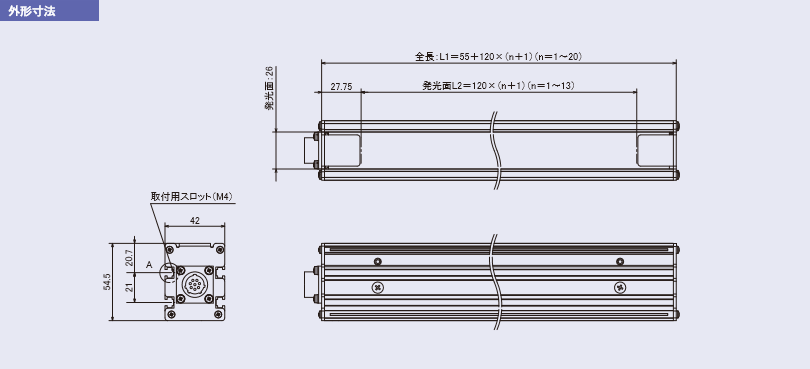

Model	Light-emitting part (mm)	Full length (mm)	Power consumption (W)	Weight (Kg)
Model	Light-emitting part (mm)	Full length (mm)	Power consumption (W)	Condenser type	Normal/permeant diffusion
UHPL1-240-□	240	295	15.1	0.8	0.8
UHPL1-360-□	360	415	22.7	1.2	1.2
UHPL1-480-□	480	535	30.2	1.5	1.5
UHPL1-600-□	600	655	37.8	1.8	1.8
UHPL1-720-□	720	775	45.4	2.1	2.1
UHPL1-840-□	840	895	52.9	2.4	2.4
UHPL1-960-□	960	1015	60.5	2.7	2.7
UHPL1-1080-□	1080	1135	68.0	3.1	3.1
UHPL1-1200-□	1200	1255	75.6	3.4	3.4
UHPL1-1320-□	1320	1375	83.2	3.7	3.7
UHPL1-1440-□	1440	1495	90.7	4.0	4.0
UHPL1-1560-□	1560	1615	98.3	4.3	4.3
UHPL1-1680-□	1680	1735	105.8	4.7	4.7

“□” should be replaced with L (light condenser), N (normal) or D (diffusion) accordingly.

Model	UPD36150W-1-L
Output	1CH output　36V　Max. 106W
Input	AC100-240V　50/60Hz　Max. 120VA
Inrush current	AC100/200V　5A　50ms
Drive system	Constant-current

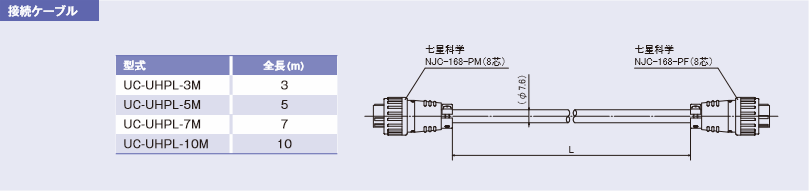

Compatible lights	Lights with 36VDC input (line LED light, UHPL1 series)
Light control	Manual: 8-bit light control by using the front volume (256-step) External: Ethernet　Command input by TCP/IP
Means to turn output ON/OFF	External ON/OFF signals or command input by TCP/IP communication Connector: XMR-02V (JST)
Error detection	Can be checked by command when LED open state is detected
Interface	10/100Mbps Ethernet connector, auto MDI/MDI-X
Cooling system	Natural air cooling
Installation	Horizontal setup with the rubber feet down
Specified environment	Temperature: -10℃ to 45℃ Humidity 10% to 80% (non-condensing)

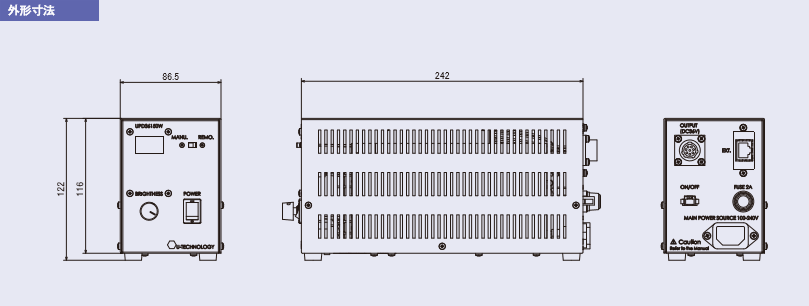

Outside dimensions	86.5mm x 116mm x 242mm (protrusions not included)
Mass	About 2kg
Installation conditions	Clearance of 50mm from ceiling and 15mm from side walls
