IR Series

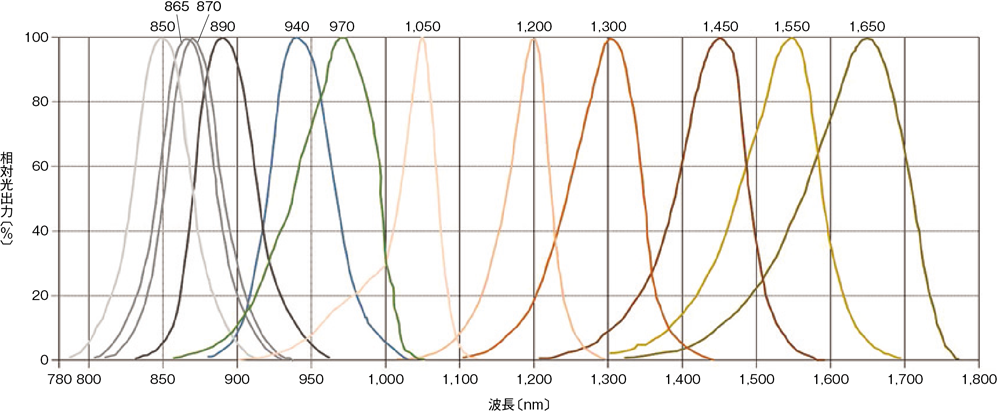

Lights of wave forms from 850 nm to 1650 nm are available.This series allows for inspections that were not practical by using near IR rays.
Click here for Near IR LED (>1,000 nm)
Products
LED Light
Near IR LED (>1,000 nm)

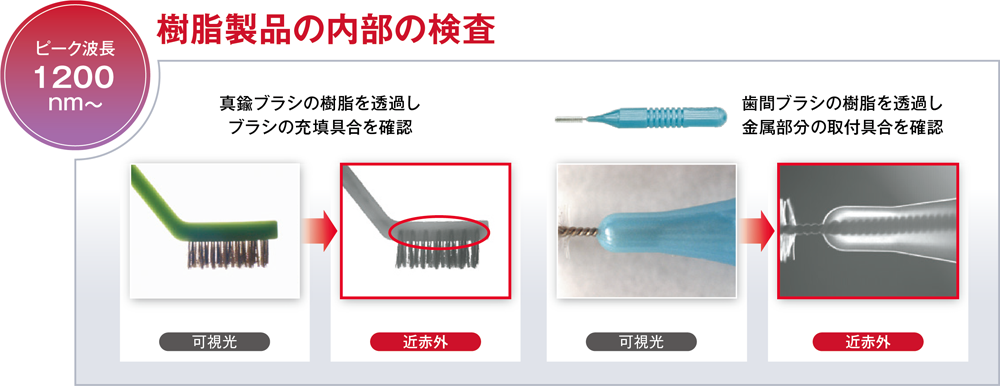

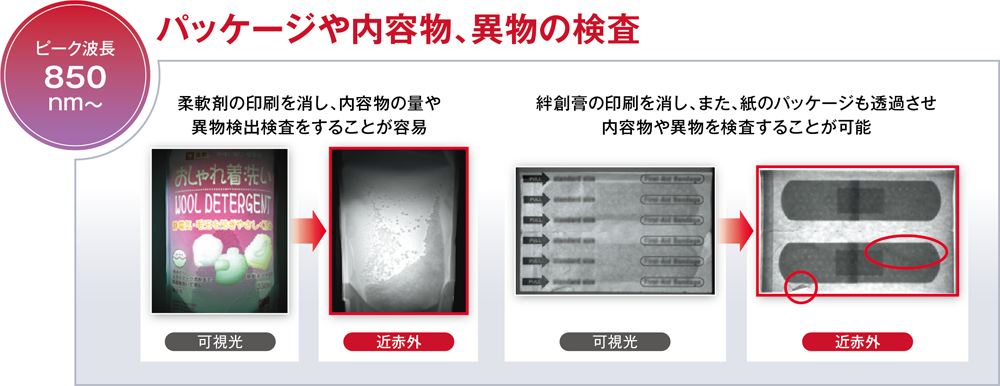

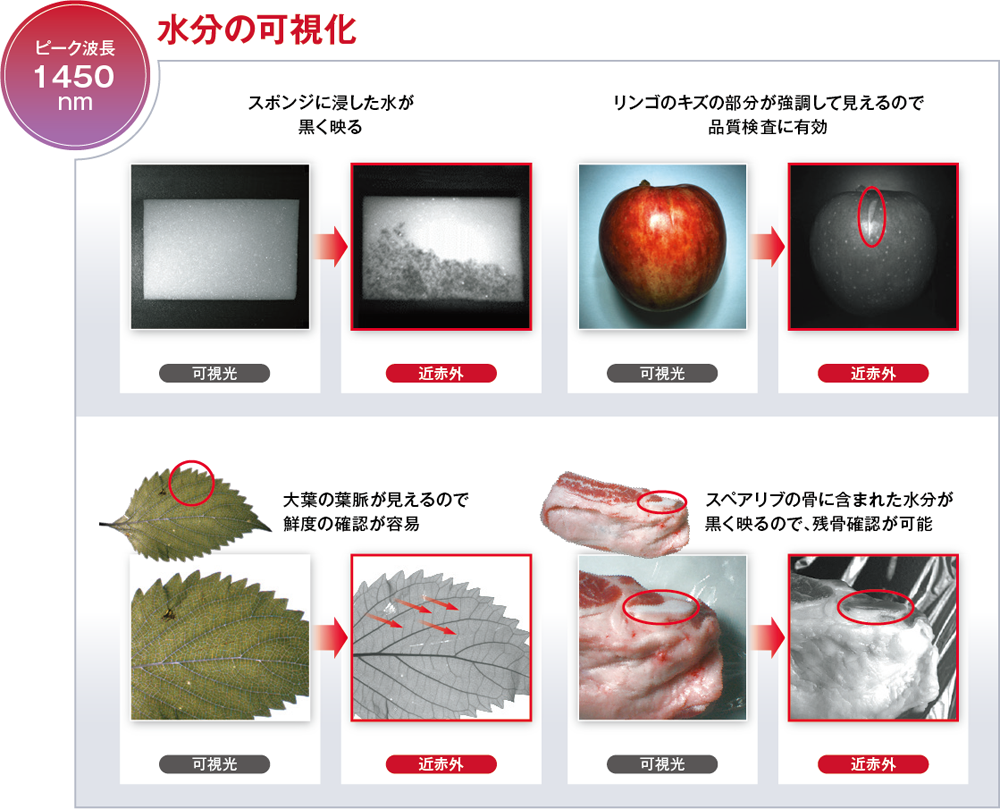

This series allows for inspections that were not practical by using near IR rays.
Click here for Near IR LED (>1,000 nm)

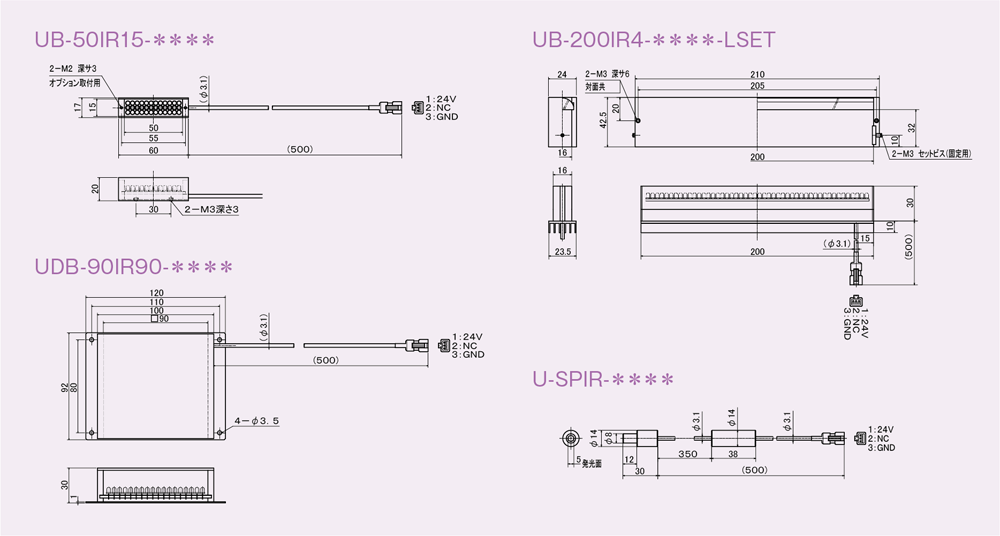

| Model | Wave form | Specifications | Power consumption |
| UB-50IR15-※※※※ | 850nm, 940nm, 1050nm,1200nm, 1300nm, 1450nm, 1550nm, and 1650nm, etc. | Bar (50×15) | 24V/2.6W |
| UB-200IR4-※※※※-LSET | 1050nm, 1200nm, 1300nm, 1450nm, 1550nm, and 1650nm etc. | Bar with condenser lens (200×4) | 24V/4W |
| UDB-90IR90-※※※※ | 850nm, 940nm,1050nm, 1200nm, 1300nm, 1450nm, 1550nm, and 1650nm, etc. | Direct transmitted (90×90) | 24V / 15.5 – 22.7W |
| U-SPIR-※※※※ | 850nm, 940nm, 1050nm, 1200nm、, 1300nm, 1450nm, 1550nm, and 1650nm etc. | Spot / φ8 | 24V / 0.8 – 1.0W |
| UDB-220IR100-5CH | 5 wave forms: 1200nm, 1300nm, 1450nm, 1550nm, and 1650nm | Direct transmitted (220×100) | 24V/22.5W (total of 5 wave forms) |
